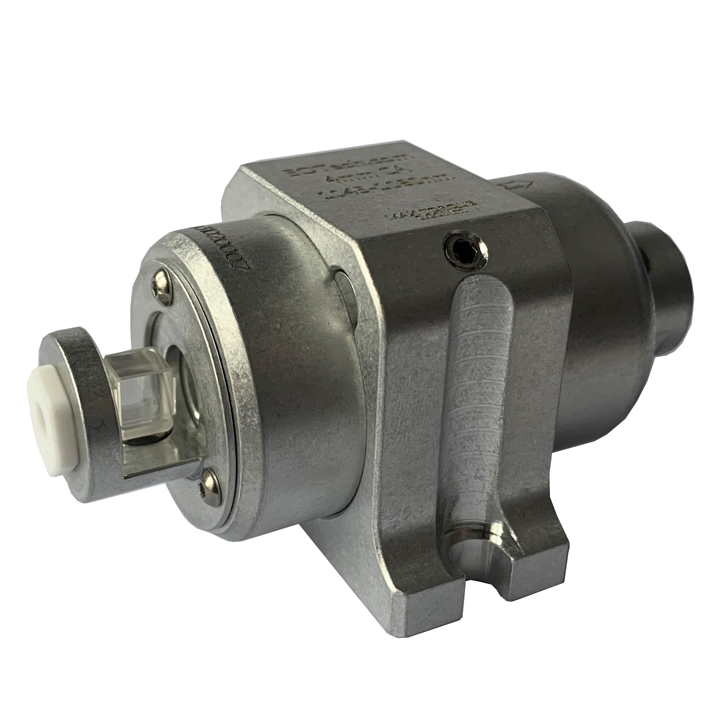

Free-Space Isolator, 4 mm Clear Aperture, 1010-1045 nm, PAVOS + Ultra

Free-Space Isolator, 4 mm Clear Aperture, 1010-1045 nm, PAVOS + Ultra

SKU 110-23041-0001
UOM Each

Our PAVOS + Ultra rotators and isolators deliver industry-best reliability and performance. The PAVOS + Ultra devices provide superior isolation, especially at higher average power levels, while maintaining high transmission values. Waveplate option.


Price $2,000.00 USD


Details

Our PAVOS + Ultra Faraday rotators and isolators deliver industry-best laser reliability and performance while providing superior isolation and maintaining very high transmission. Our PAVOS + Ultra products rely on the Faraday effect from high Verdet constant, low absorption materials to rotate the plane of linearly polarized light in the forward direction and an additional 45° of non-reciprocal rotation in the reverse direction. The PAVOS + Ultra is available as a rotator or an isolator.

These devices offer:

  • Specified performance to 150 W
  • Available with 4 mm clear apertures
  • Optimized for use from 1010 nm to 1080 nm
  • Isolation greater than 33 dB
  • Transmission greater than 95%
  • Optional waveplates available

Our PAVOS + Ultra Faraday Rotators and Isolators are completely passive devices; no tuning required with a rugged design suitable for harsh operating environments. Optically contacted PBS cubes included for improved damage threshold. All isolators contain rejected beam escape ports and are adjustable to handle any angle of linear input polarization without additional optics. Precision mounting options and rejected beam pointing are available.

Buy now, contact Coherent to order your PAVOS + Ultra today.
